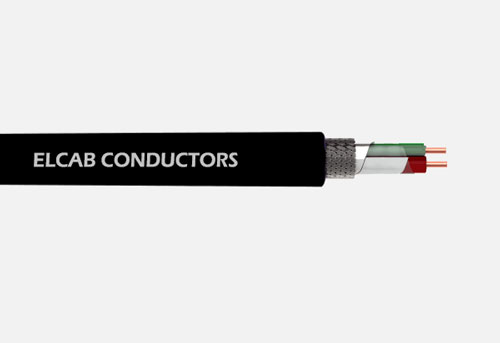

Elcab Conductors is premier CAN BUS cable manufacturers, suppliers in India. We design our cables with shielding strength and accuracy of the twisting of the copper to exclude interference and provide high quality and speed signal integrity of our cables in complex and hostile environments. For fast automotive networks or heavy machinery that needs to be continually run, we can provide the custom quality with the certification required to ensure your advanced systems run perfectly. Use us because we are known to be good--your sure deal with tomorrow.
What is CAN BUS Cable?
A CAN BUS Cable (Controller Area Network Bus Cable) is a special electrical cable that can be utilized to connect several electronic boxes and control units to enable them communicate with one another. It applies a twisted-pair structure including shield to guarantee quick, most dependable and mistake-free communication over a network. It serves as a safe and secure common road of digital signals, and that is why it is used in controlling real-time critical systems in machines and vehicles.
Types of CAN BUS Cable:
Being as foremost CAN BUS cable manufacturers in India, we provided different types which are given below.
Twisted Pair Cable
- Unshielded: Two conductors are twisted to cancel the EMI and it is otherwise a standard in less electrically noisy surroundings in CAN BUS cable suppliers in India.
- Shielded: An extra wrap of foil or braid is provided over the twisted pair to protect it more effectively against electromagnetic interference. Those vehicles that have many electrical systems or those in industrial environments are advised to use this.
Coaxial Cable
- Coaxial cable is used in a few high-speed CAN buses. It is a single conductor that is enclosed by a grounded shielding braid, and this reduces EMI and signal loss.
Other considerations
- Cable construction: CAN BUS Wire Manufacturers in India may also be defined in terms of insulation, jacket material and so on as being low-smoke, marine-rated or armored.
- Application dedicated cables: Cables also exist that are protocol-specific and run on the CAN bus, e.g. the J1939 standard.
For your power and signalling needs in one package, our Shielded Battery Cable Manufacturers in India section offers high-performance cables designed for industrial and automotive applications.
Technical Specifications of CAN BUS Cable:
We've added below a specialized table of CAN BUS Cable in India that provides further technical specification information.
| Category | Parameter | Value / Requirement |
|---|
| Standard | Protocol Layer | ISO 11898-2 High-Speed CAN |
| Type | Construction | Twisted Pair, Shielded STP |
| Electrical | Characteristic Impedance Z₀ | 120 Ω ±10 Ω |
| Conductor Size AWG | 18 AWG to 22 AWG (0.34 mm² to 0.75 mm²) |
| Cores/Pairs | 1 Pair (CAN-H and CAN-L) |
| Color Code | CAN-H: Yellow, CAN-L: Green (Automotive/Industrial) or White/Brown (European/Industrial) |
| Shielding | Type | Foil and/or Tinned Copper Braid |
| Environmental | Jacket Material | PUR (Polyurethane) or PVC |
| Jacket Color | Violet Purple |
| Temperature Rating | −40°C to +80°C or +105°C / +125°C |
| Performance | Max Data Rate | 1 Mbit/s (Classical CAN) to 8 Mbit/s (CAN FD) |
| Max Bus Length | 40 m at 1 Mbit/s, up to 1000 m at 50 kbit/s |
Benefits of CAN BUS Cable:
We as CAN BUS cable suppliers in India, different benefits are there according to environment which are given below.
- High Data Integrity: The twisted-pair structure and strong shielding reduce the electromagnetic interference (EMI). This allows a clean error free communication even in electrically noisy industrial environments.
- High-Speed Transmission: These are CAN BUS cable manufacturers in India, which are used to support high data rates, which can be used in real-time control and monitoring applications. This enables fast and effective communication among all the devices and sensors that have been networked.
- Flexible and Durable Jacket: The external jacket is usually of rough materials such as PUR or PVC which provides it good resistance to oil, abrasion and temperature extremes. This provides long-term reliability in its operation in severe automotive and factory environments.
- Simplified Networking Architecture: CAN protocol enables two or more devices to use the same two-wire bus, greatly easing the task of making point-to-point connections. This eases the installation, maintenance as well as lowers the total cost of materials.
Characteristics of CAN BUS Cable:
We as foremost CAN BUS cable manufacturers in India, it has different key characteristics which are given below.
- Twisted Pair Construction: Two core wires CAN High and CAN Low are strongly twisted together throughout the entire length. This cancels out the noise of the outside and avoids signal radiation, which is fundamental to secure data differentiation transmission.
- Characteristic Impedance (120 Ohms): This particular resistance value is important to avoid the signal reflections which will interfere with the network. The matching of impedance correctly is important in sustaining stability of the network and optimum speed of transfer of data.
- Overall Shielding (Foil or Braid): The twisted pair cores are covered with an outer metallic layer in the form of a foil or a braid. This provides a shielding effect against the external electrical noise and greatly enhances the quality of signals.
- Good Quality of Conductor Material: Conductors are normally tinned copper fine strands of high purity, which is highly conductive. This material choice eliminates corrosion and long-term electrical performance is outstanding.
Applications of CAN BUS Cable.
We serve as foremost CAN BUS cable suppliers in India; it is applicable in different sites which are given below.
- Automotive Industry: The integration of vital in-car networks in Engine Control Units (ECUs), Anti-lock Braking Systems (ABS), and airbag deployment sensors.
- Industrial Automation: Industrial automation is widely applied to factory floors to connect PLCs (Programmable Logic Controllers), sensors and actuators to the complex production equipment in CAN BUS cable manufacturers in India.
- Transportation Systems: CAN BUS Wire Suppliers in India are necessary to provide reliable control and monitoring of systems in trains, metros and buses, which include door controls, brakes and passenger information displays.
- Medical Equipment: The supply of high-quality data transmission in the high-technological hospital equipment, such as diagnostic imaging machines, patient monitoring devices, and laboratory equipment.
Why CAN BUS Cable from Us?
- Bespoke Solutions: We not only design and produce cables to fit your particular technical specifications but also not the off-the-shelf only.
- Certified Quality: Our products are of the highest global standards (such as UL and CE) meaning that they are safe and fulfil their compliance and very reliable in their operation.
- Decades of Expertise: Decades of experience means precision engineering and unvarying and perfect quality in each and every meter of cable.
Elcab Conductors is notable CAN BUS cable manufacturers, suppliers in India. Stop experiencing untrustworthy connection. Our CAN BUS Cables are what make you make your systems smarter, faster, and longer. They are constructed on the platform of accuracy engineering and high-quality that is strictly tested, which is the perfect option when sharing data in highly desirable real-time and required in an environment that is critical. Don't just connect--perform. Contact us today and find out how our custom CAN BUS solutions will make your network future-proof!
