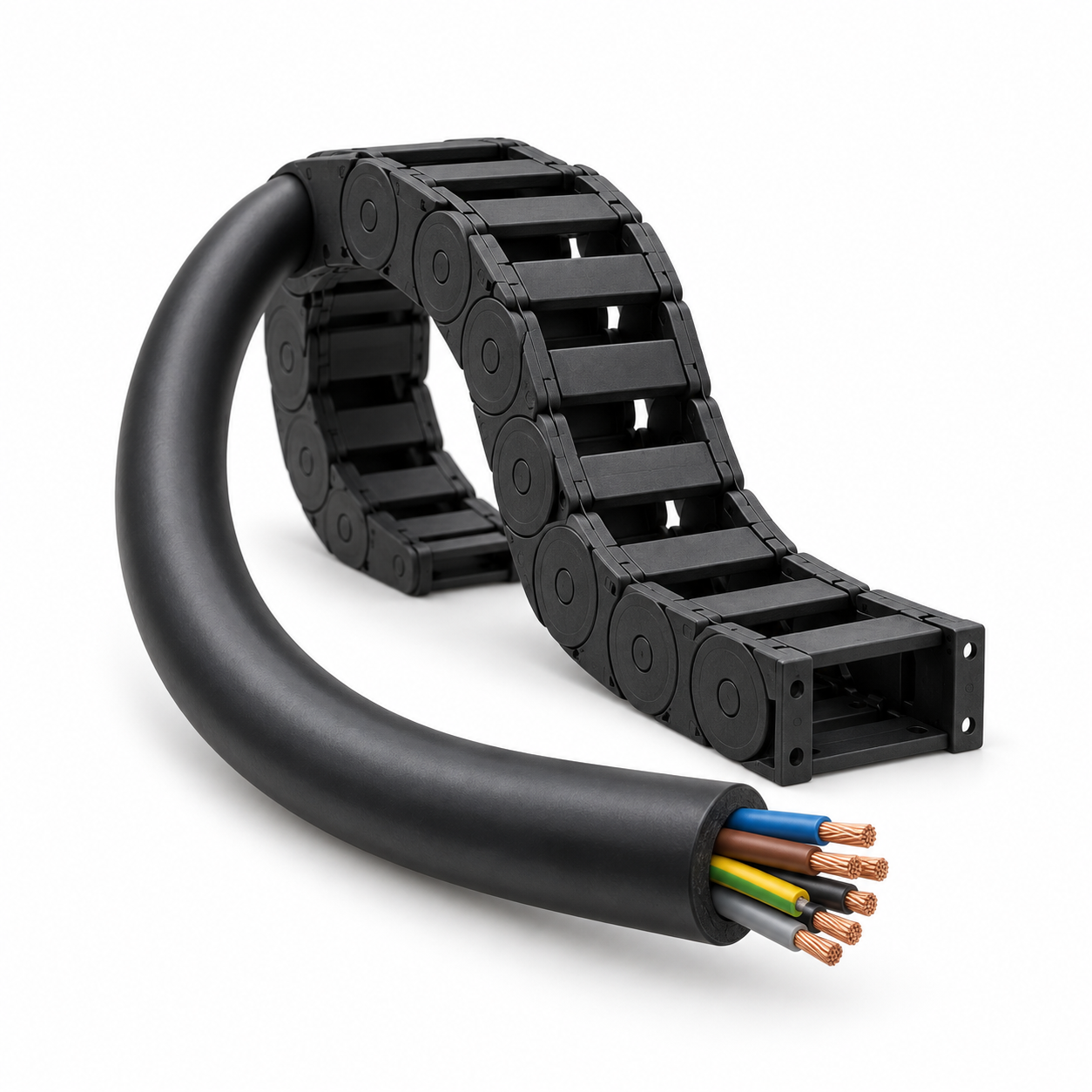

Drag Chain Duty Cables

Applications

Our Drag Chain Duty Cables are engineered for continuous movement in energy chains, cable carriers, and automated machinery. They are designed to withstand repeated bending and flexing in applications such as CNC machines, robotics, industrial automation, material handling systems, and automated production equipment.

Cable Construction

Conductor: Extra-fine stranded copper designed to withstand repeated flexing and conductor fatigue
Insulation: Flexible insulation system selected according to the required temperature and mechanical performance
Core Assembly: Controlled lay construction helps minimize mechanical stress during continuous movement
Shielding: Optional foil, braid, or combined shielding for EMI/EMC-sensitive applications
Outer Sheath: Flexible PVC or TPE designed for resistance to abrasion and mechanical wear

Key Features

Designed for continuous flexing and dynamic applications
Excellent resistance to conductor fatigue
High flexibility for cable carrier applications
Controlled construction to minimize mechanical stress
Available in shielded and unshielded versions
Good resistance to abrasion, oils and coolants
Suitable for high-cycle automated machinery

Typical Applications

CNC machines and machine tools
Industrial robots
Automated production lines
Pick-and-place machinery
Packaging machinery
Material handling systems
Gantry systems
Conveyor systems
Industrial automation equipment

Technical Specifications

Parameter	Specification
Cable Type	Drag Chain / Continuous Flex Cable
Conductor	Extra-fine stranded annealed copper
Conductor Finish	Bare or tinned copper
Insulation	Flexible PVC / XLPE / TPE, as per application
Construction	Multi-core
Voltage Rating	As per cable design
Temperature Rating	Application dependent
Shielding	Shielded / Unshielded
Shield Type	Foil / Tinned copper braid / Combined shield
Outer Sheath	Special flexible PVC / TPE
Flexing	Designed for continuous dynamic movement
Bending Radius	As per cable construction and application
Flex Life	Designed for high-cycle applications
Application	Energy chains, CNC, robotics and automated machinery
